Messung Smart Power Distribution solution for Villas

Smart Power Distribution Solution

Every luxury villa, bungalow or farmhouse requires a convenient Electrical Panel to terminate the various sources of power. Typically, these residences use power from four main sources: main power grid, Diesel Generator, UPS and Solar.

These homes also need a Controller to help maintain and monitor all the various elements and provide uninterrupted power to the occupant. Messung works with clients to offer them the safest and most efficient solution ensuring that every panel is made to order for the client’s specific requirements.

Typical requirements of villas, bungalows & farmhouses

Luxury villas, bungalows and farmhouses come with many electrical and safety elements that require constant maintenance and seamless interoperability to ensure comfort and convenience. The list of requirements includes:

  • UPS to Generator switching with fuel level monitoring of generator
  • Energy metering and monitoring (allowing auto changeover and shutdown of large consumption sources during power outage)
  • Water pump system
  • Boiler/Geyser/Solar operation
  • Sprinkler system for lawns
  • Timer control for outdoor and indoor lighting
  • Alarm indications with app-based notification
  • Synergy with security, surveillance and Smart Automation systems already existing in the house
  • Easy integration with Home Automation Systems like KNX, etc.
  • A neat and elegant visual display made specifically to provide accurate status of all systems
Smart Power Distribution Solution


Messung’s Smart Power Distribution Solution (SPDS)

Messung’s Smart Power Distribution Solution is designed to be the center for connected power in the luxury villa. It is an intelligent control panel designed as per IEC 61439 standards with compact power distribution for space saving and PLC controls for switching the source. The entire system can be monitored locally with HMI and Scada system and remotely with IoT interface and Cloud connectivity.

Features of Messung’s Smart Power Distribution Solution (SPDS)

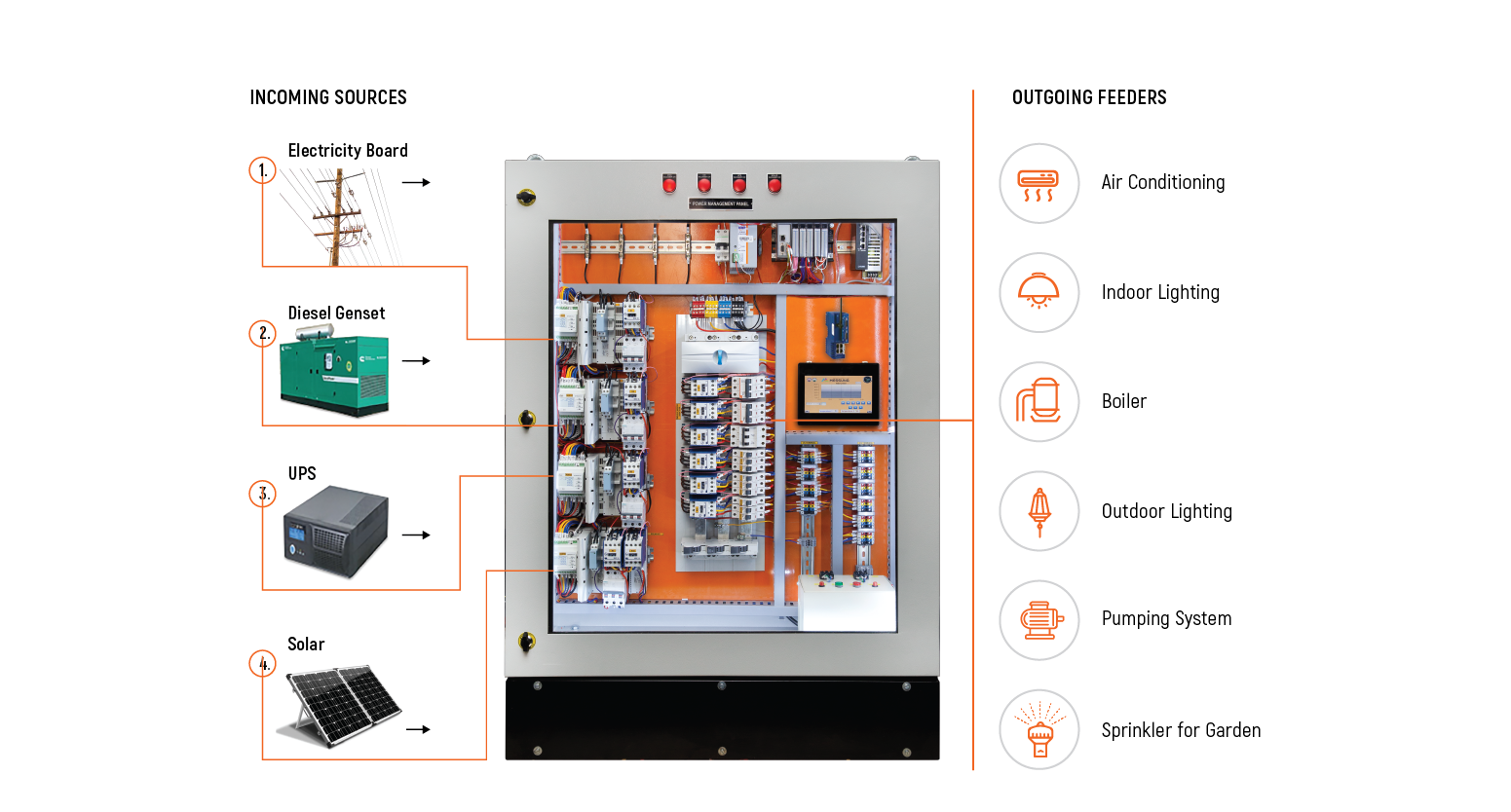

  • Individual sources from grid, DG set, UPS, Solar
  • Auto changeover of the incoming sources through PLC and monitoring by HMI
  • Compact power distribution with space saving
  • Individual power consumption from different sources
  • Alarm indications like low fuel level, solar and UPS battery status
  • IoT interface possible (alarm & notification through SMS) and Cloud connectivity
  • Cloud connectivity and remote monitoring on mobile and laptop
  • Power management panel ranges from 25kw to 75kw

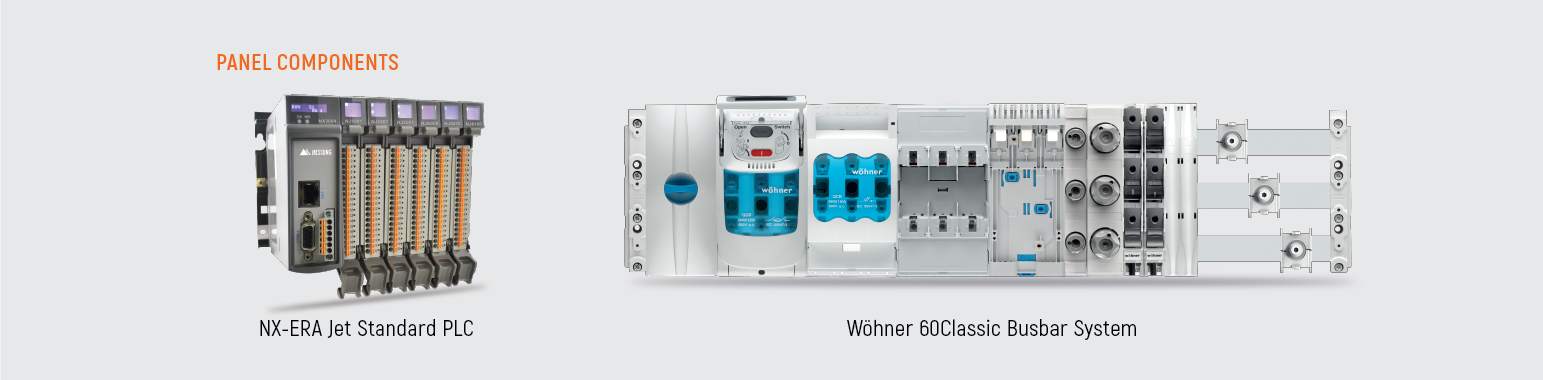

PLC Control Description

  • MODBUS TCP/RTU, PROFIBUS, ETHERNET IP, MQTT, OPCUA communication available
  • PLC will continuously monitor availability of power source and in case of failure will automatically change the source in predefined way

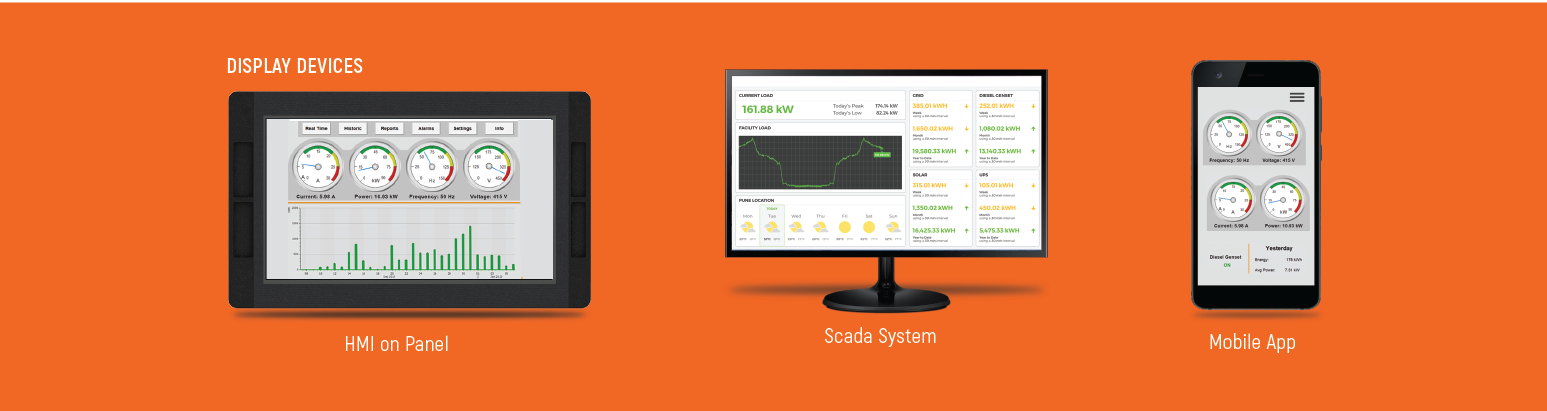

  • Can easily monitor the system through HMI, SCADA and also through mobile app
  • Mobile app and PLC communication is possible through OPCUA & MQTT PROTOCOL
  • Can be interfaced with Cloud connectivity for data storage & analysis
  • SMS & notification for alarm and critical events
  • User friendly screens to guide the user for diagnosis

Smart Power Distribution Solution

Smart Power Distribution Solution


Typical Load Calculation (Sample table)

Every luxury villa, bungalow or farmhouse requires a convenient Electrical Panel to terminate the various sources of power. Typically, these residences use power from four main sources: main power grid, Diesel Generator, UPS and Solar.

These homes also need a Controller to help maintain and monitor all the various elements and provide uninterrupted power to the occupant. Messung works with clients to offer them the safest and most efficient solution ensuring that every panel is made to order for the client’s specific requirements.

                                          QTY      kW        TOTAL kW

Motor                                2              2            4

Ac                                       5             2.5        12.5

Boiler                                 1             1.5          1.5

Indoor lighting                 20         0.009     0.18

Outdoor lighting              20         0.012     0.24

Home appliances             10           0.3          3

Sprinklers                          2           0.18        0.36

Total kW                        21.78

Recommended panel as per above chart: Smart Power Distribution Solution 25kW

Conclusion

Messung’s SPDS provides all the safety features of a standard panel with added functionality and aesthetics designed for the modern, luxury home.  It connects cutting-edge hardware with innovative software to enable users to pinpoint overloads & inefficiencies, make informed decisions, improve operational efficiency and ensure smooth changeovers to provide comfort, convenience and safety for residents.

SPDS helps to protect people and equipment, and allows you to monitor the property in real time. SPDS is available in ranges from 25kw to 75kw, to suit individual requirements. Through Cloud connectivity, you can monitor and access the status of your home’s electrical system on your smart device or computer, helping you to optimise energy expenses, ensure 100% uptime and fail-safe operation.
